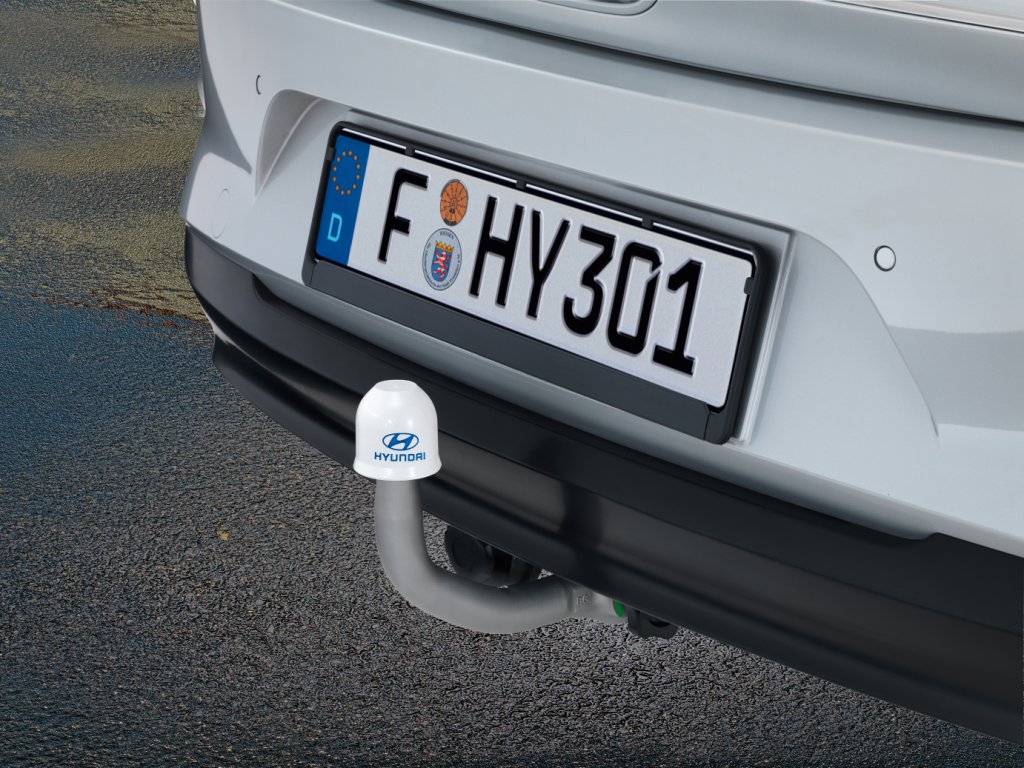

Hyundai i30 PD, Towbar, detachable

Product detailed description

Removable and above all reliable: You can rely on this corrosion-resistant steel tow bar to transport your load safely and efficiently. Thanks to the three-ball locking system, it can be easily detached. The maximum payload of the bike carrier is 75 kg including the weight of the bike carrier. Certified according to UNECE Regulation 55R. Reference image.

- D value: 8.7 kN
- Max. Towing capacity (depending on vehicle specification): 1500 kg
- Vertical load (trailer): 80 kg
- Vertical load (wheel carrier): 75 kg
- Standard trailer hitch for car transport (CARLOS TC) / Standard wheel carrier for car transport (CARLOS BC)
- Vertical detachable 3-ball locking system for easy and secure mounting from below
- Corrosion protection: E-coating / KTL according to OEM standard (480-hour salt spray test)
- Zinc-nickel coating of the towing ball for highest corrosion resistance (720-hour salt spray test)
- System is sealed when the towing ball is in place, otherwise the shaft sleeve is protected by a special plug
- Audible and visual indicators confirm secure connection
- Manually retractable socket holder, out of sight when the towing ball is not in use
- Maintenance-free detachable system
- Lockable: the drawbar lock is protected by a dust cap
- Lock plug (the towing ball will fall out if inserted incorrectly)
- Very low height of the detachable system (no wear)

For vehicles:
Hyundai i30 Hatchback (MY20)
Hyundai i30 Hatchback N Line (MY21)

OEM:
G4281ADE50
